Description

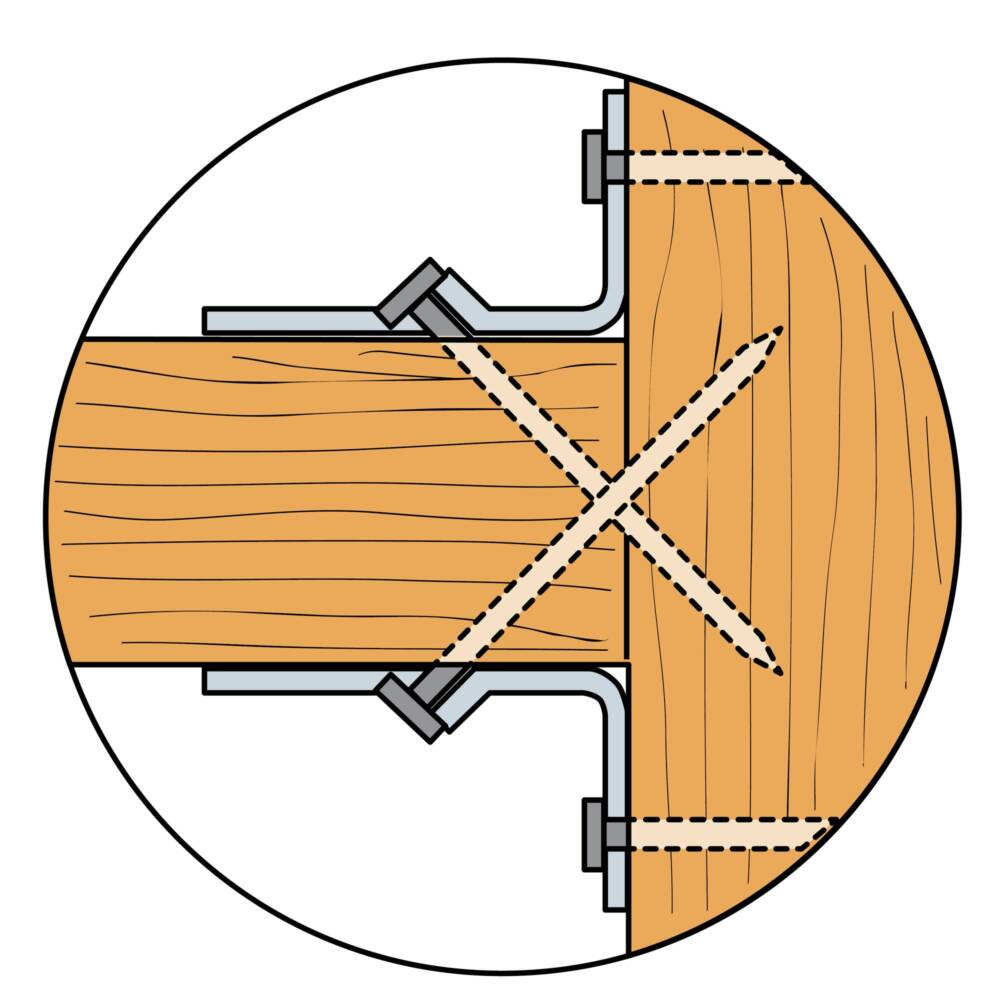

Height adjustable joist hanger for supporting timber joists from timber members.

Material

• Pre-galvanised mild steel.

Features

• A galvanised joist hanger that provides great support with ease of installation.
• Published performance values are based upon 3.75 x 30mm square twist nails being used throughout.
• Wider strap provides more surface area on the supporting timber and allows increased nail spacing, enhancing the performance of the critical hanger-to-support part of the connection.
• Minimum and maximum nailing schedules are stamped into the strap providing correct installation information for site operatives.
• Speed-prong holds the hanger in position to allow easier attachment. The installer no longer has to try to hold hanger, joist and nail with one hand and swing a hammer with the other!
• JHA270 range features a location tab which allows easier alignment of the hanger.
• The model number and size is stamped into the seat of the hanger for easy identification, even after installation.

Suitable On

• Solid sawn timber joists

When to Use

• Face Fix
• Wrap Over

Additional information

Weight	1000 g
Dimensions	27 × 5 × 5 cm
